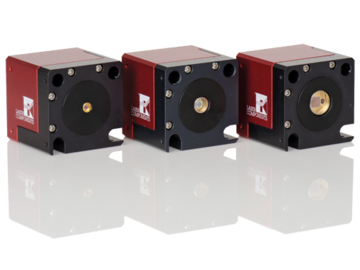

Precise measurement technology in a compact measurement setup: this describes the new P-CUBEs!
Low-noise, sensitive PIN photodiodes are housed in cubes. The CUBEs have an edge length of only 40 mm. To integrate them into optomechanical setups, the CUBEs can be attached to a rod system.
The following versions are available:
- GaP photodiode
Particularly low noise;
sensitivity: 190 – 570 nm - Si photodiode
Enhanced in the blue spectral range;
sensitivity: 200 –1050 nm - InGaAs PIN photodiode
Enhanced in the NIR;
sensitivity: 800 – 2200 nm
The photocurrent is obtained using a BNC connector. The P-CUBE is also available with an optical FC connector.
iAMP-700.
The programmable iAMP-700 current amplifier is directly connected to the P-CUBE with a BNC connector. It is possible to achieve amplifications of 102-1011 V/A with the iAMP-700.
P-CUBE & iAMP – A Strong Combination
By combining the P-CUBE and iAMP-700, the smallest amount of light can be detected reliably. The iAMP’s EMC housing allows application in close proximity to the source. The P-CUBEs require a bias voltage between -10 V and +10 V. This can be obtained directly from the iAMP.
