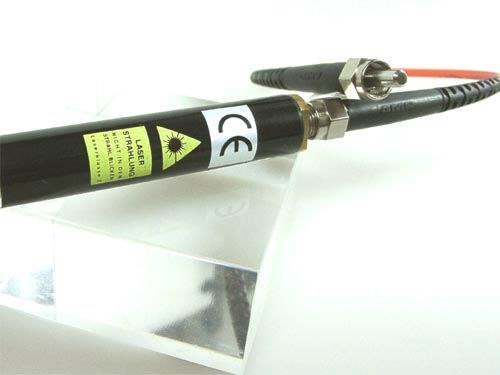

In an addition to LASER COMPONENTS’ FLEXPOINT® free space range of laser diode modules (LDMs), fiber coupled modules are now available. They are supplied with fiber connectors (universal 2.5 mm ferrule) or SMA connectors. Wavelengths available are 635 nm, 650 nm and 655 nm. Fiber/power options include: 50/125 µm fiber, producing 1 mW and 7 mW, and 200 µm fiber, producing between approximately 1 mW and 20 mW. Familiar optional extras are also available for fiber coupled LDMs: modulation, adjustable power via a potentiometer, and input voltage 8 - 30 VDC. A pulsing laser light option is also available. The FLEXPOINT® laser diode modules can be adapted to your specific requirements, even for small quantities. vision instruments.
